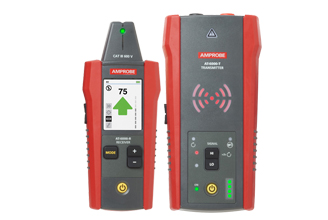

Amprobe AT-6020 Advanced Wire Tracer Kit
Amprobe’s newest wire tracer combines a Receiver and powerful Transmitter to locate energized and de-energized wires, breakers, and fuses without having to disconnect any equipment. The Receiver features four tracing modes optimized for a range of applications. Its fully automatic breaker tracing capability saves time and eliminates the confusion of multiple false positives by detecting the highest recorded signal in a breaker or fuse. The Transmitter utilizes two optimized frequencies that allows for a clean and reliable signal. The Signal Clamp can be used in applications where there is no access to bare conductors by enabling the Transmitter to induce a signal into a wire through insulation. Whether you’re a novice user or an expert, the AT-6000 Amprobe Advanced Wire Tracer kit will help you get the job done fast.
- Traces wires in walls, ceilings, floors and corners
- Locates breakers and fuses
- Pinpoints shorts and opens
- High resolution 2.5" TFT LCD color display
- Three Transmitter signal modes
- "High Signal" mode for normal circuits
- "Low Signal" mode for precision tracing in difficult areas
- "Loop" mode for closed loop de-energized circuits
- Four Receiver tracing modes
- "Quick Scan" mode allows for quick wire detection at a longer distance
- "Precision" mode precisely pinpoints wires or faults located behind walls, floors, or ceilings
- "Breaker Identification" mode facilitates quick and easy breaker locating
- "Non-Contact Voltage Detection" mode utilizes passive tracing without the Transmitter to verify if a wire is energized
- Two automatically selected frequency modes for reliable tracing on energized and de-energized circuits
- Comes with custom Amprobe hard carrying case, test leads, and accessories
- Compatible with optional Signal Clamp (CT-400) clamp-on attachment and TIC 410A Hot Stick attachment to extend your reach
